Lightweight wearable eye tracking system
*Developed with the support of PUPIL LABS in Germany.
ViewTracker3 is a new eye tracking measurement system with a light-weight headset that adopted USB3.0 for its interface.
Three small digital cameras are mounted, and the data of the field of vision and the movement of pupils of both eyes are obtained.
The gaze data will be measured in real time.
Captured images can be transported and saved to Windows computers by USB 3.0 cable.
Small pupil cameras allow the eye tracking measurement for the downward gaze, and the posture and the position of the cameras can be flexible.
For a user wearing glasses, this headset can be wearable under their own glasses and corrective lenses are not necessary.
Automobile: eye movements while driving cars
- Gaze measurement in free space
Production site: visualizing inspection process
- Visualization of experts' eye movements
- Manual for beginners, sharing quality management policy
Specialized operation: educational purpose
- Visualization of experts' eye movements
- Manual for beginners
Psychology, academic research, TV programs
- Providing materials for psychological research
- Visualizing gaze difference between generations
Features of ViewTracker3
Small and lightweight
| Using with own glasses |
Wearable under their own glasses. Corrective lenses are not necessary. |
|---|---|
| Small | Wearable with a helmet. |
| Very light | Weight is only about 40g. Optimal structure to fit user's face well. Small and light. |
High performance
| High speed sampling |
High speed sampling up to 200Hz for eye cameras. Sufficient data to ensure accuracy. |
|---|---|
| Wired data transmission |
Stable data transmission compared with wireless system. |
| High definition camera |
World camera is 30Hz high definition camera. (will be available for full HD in the future) |
| Auto gain control | Allowed to use under the sun. |
High functionality
| Analysis function | Heat map, gaze history, area analysis, etc. are standard analysis items. |
|---|---|
| 3D model measurement | Reducing the errors caused by differences in distance by estimating both eye ball models in 3D. |
| Locus | Gaze history is shown as locus. The locus length is changeable. |
| Duration of pause | Point where a subject paused is displayed clearly in an enlarged pointer. |
| Interchangeable lens | Magnifying lens is included. |
Useful function
| Real-time measurement |
The gaze data is measured in real time and written to a specific folder, and thus you can check it immediately after the measurement. The network function enables real-time access to data. (1FPS for scenery images) |
|---|---|
| Auto calibration |
Completed in a short time. Just follow the pointer on the screen with your eyes. |
| Languages | English / Japanese |
|
Offset function |
Fix the error that tends to occur only by a click. |
|
Live video |
Live video of the gaze data is displayed on the screen while measuring. |
Analysis results

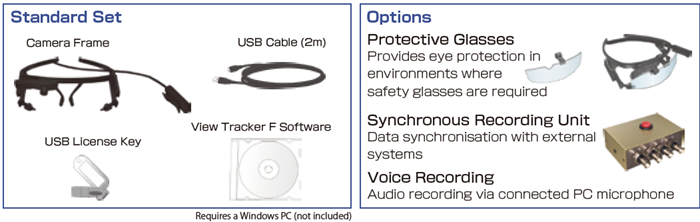

Configuration
Specification
| Eye camera sampling | 200Hz, 120Hz |
|---|---|
| World camera sampling |
30Hz (Resolution 1280×720) |
| World camera adjustment |
Backlight compensation, Brightness, Contrast, Gain, Hue, Saturation, Sharpness gamma, White balance |
| Connection with PC | USB3.0 cable included |
| Cable length | 2m / 5m (optional, no guarantee of proper operation) |
| Calibration method | Manual (Specify the gaze point) / Automatic detection (Follow the indication marker) |
| Output movie files | MP4 (Mpeg4 / Motionjpeg) |
| Output audio file | MP3 |
| Weight of headset | Approx. 40g |
| Measurement modes | 3D (Search for the gaze crossing point) / 2D |
|
Field of view (Horizontal x Vertical)° |
Wide angle 106×56 / Magnification 41×23 |
| OS | Windows10 (64bit) |
| Data capacity | 400MB / min (Reference value, varies depending on conditions) |
